Description

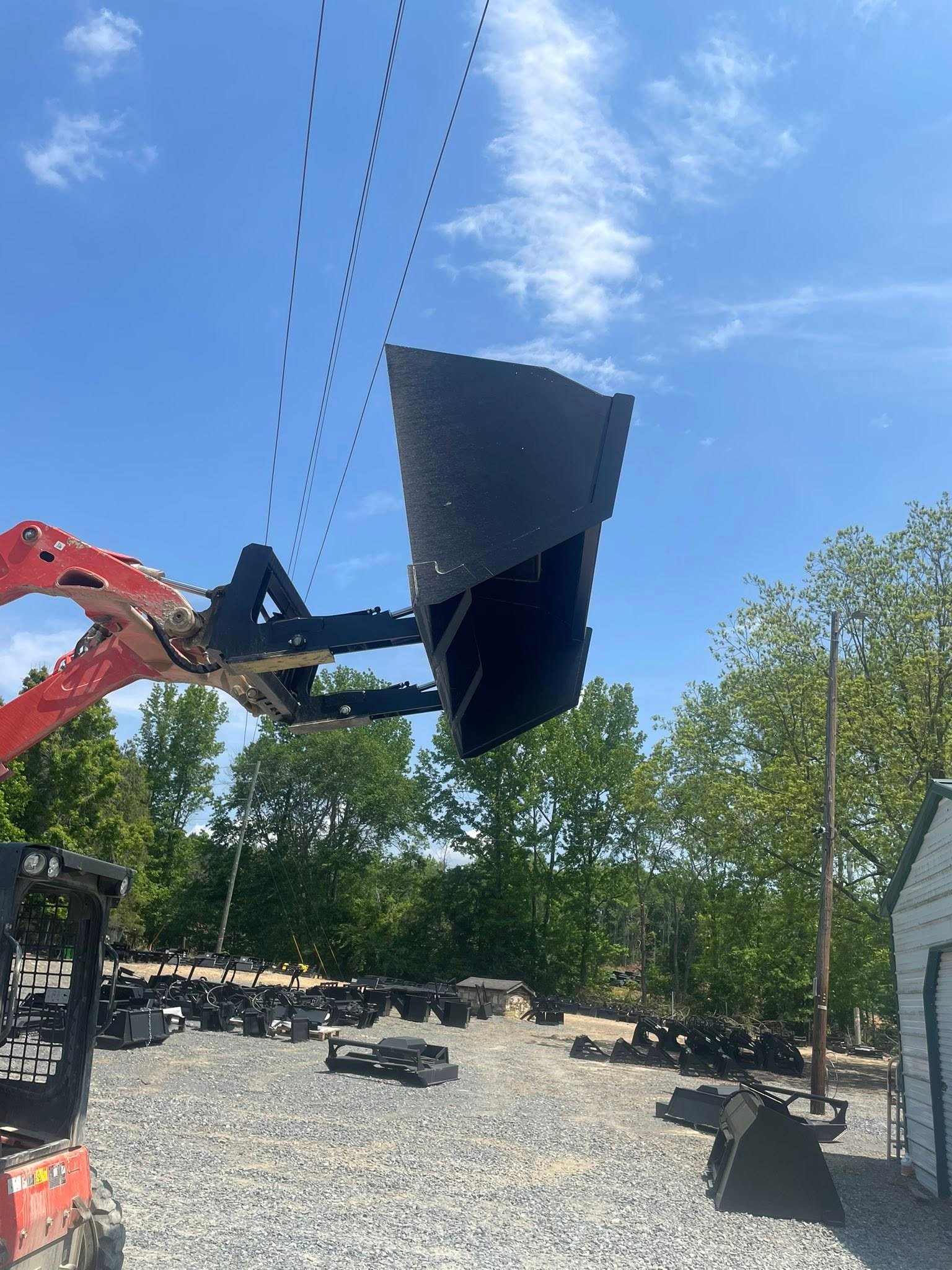

• Enhanced Reach and Height: Gains an additional 5’ of height and 3’ of reach for loading into taller trucks.
• Powerful Hydraulics: Equipped with two 2” x 10” hydraulic cylinders for smooth and efficient operation.
• Durable Design: Features oversized, greasable 1 1/4” pins for long-lasting performance and easy maintenance.
• Job Site Ready: Comes with Parker brand hoses, fittings, and couplers for immediate use.
• Customizable Edge: Available with an optional bolt-on reversible double edge for added versatility.
• Multiple Sizes: Stocked in 72”, 78”, 84”, and 96” widths to suit various skid steer models.
• Robust Cutting Edge: Includes a 3/4” thick x 6” wide cutting edge for durability and effective material penetration.

Benefits:

• Increased Efficiency: Easily load higher trucks and reach further, reducing the need for additional equipment.
• Reliable Performance: High-quality components ensure consistent operation under heavy loads.
• Low Maintenance: Greasable pins and protected hydraulics minimize downtime and upkeep costs.

Specifications:

• Height Increase: 5 feet over standard buckets.
• Reach Increase: 3 feet over standard buckets.
• Hydraulic Cylinders: Two 2” x 10”.
• Pin Size: Oversized greasable 1 1/4” pins.
• Cutting Edge: 3/4” thick x 6” wide.
• Available Widths: 72”, 78”, 84”, 96”.

Ideal For:

• Loading materials into tall trucks or trailers.
• Construction site material handling.
• Landscaping and agricultural applications.
